| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | CoatTech |
| 인증: | CE |
| 모델 번호: | CT-준비 A21 |
| 최소 주문 수량: | 1 |
| 가격: | USD1000-USD6000/SET |
| 포장 세부 사항: | 일반 필름과 상자와 함께 |
| 배달 시간: | 입금 후 15 일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 30세트/월 |
| 이름: | CT-준비 A21 | 에너지 사용 :: | 디젤, 가스, 증기, 전기 또는 기타 옵션 |
|---|---|---|---|
| 메인 문 :: | 접이식 스타일 또는 전기 롤링 스타일 | 모터:: | 중국 브랜드 또는 수입 브랜드 |
| 제어 시스템 :: | 스위치 스타일 또는 PLC 터치 스크린 컨트롤 | 벽:: | 금속 쉘, EPS, 옵션을위한 PU의 바위 울 |
| 색상:: | 흰색 또는 기타 옵션 | 애플리케이션:: | 버스/트럭 또는 기타 금속 제품 |
| 에너지 원 :: | 물, 전기, 가스 | 코팅: | 10-50UM |
| 치수 :: | 요구대로 | ||
| 강조하다: | ergonomic downdraft grinding station,industrial paint preparation station,dust collection sanding workstation |
||
CT-PrepBench: Ergonomic Industrial Downdraft Grinding, Sanding, and Paint Preparation Station with Integrated Dust Dust Collection
Introduction:
The CT-PrepBench is essential for keeping the prep area clean and protecting worker health before parts enter the spray booth. It is a self-contained worktable where air is pulled down through a perforated surface, immediately capturing dust from sanding, grinding, or polishing directly at the source.
Technical Specification Sheet
| Feature | Specification |
| Airflow Direction | Vertical Downdraft (Through Tabletop) |
| Filtration | Cartridge Filters with Pulse-Jet Cleaning |
| Table Surface | Non-scratch Rubber Mat over Steel Grating |
| Motor Power | 1.5 kW - 3.0 kW Integrated Fan |
| Max Table Load | 500 kg uniformly distributed |
| Options | Integrated Lighting, Tool Hangers, Spark Arrestor |
| System | Component | Description | Optional |
| Structure | Frame | H-Beam Steel Columns + Reinforced Roof | Personnel Lifts |
| Floor Loading | 5,000 kg per Wheel (Reinforced Grating) | - | |

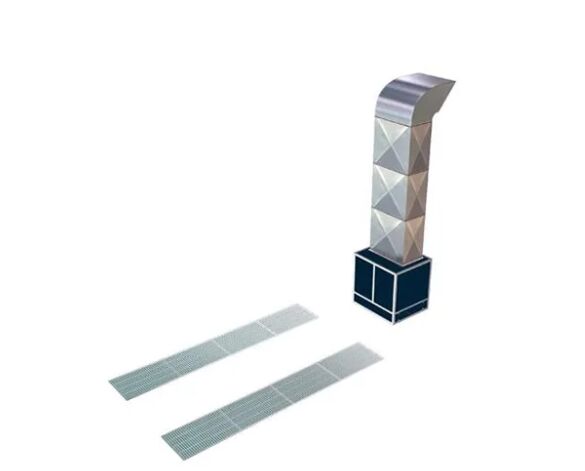

| Air System | Intake | 2 units × 11 kW Centrifugal Fans | - |
| Exhaust | 1 unit × 15 kW Belt-Drive Fan | - | |

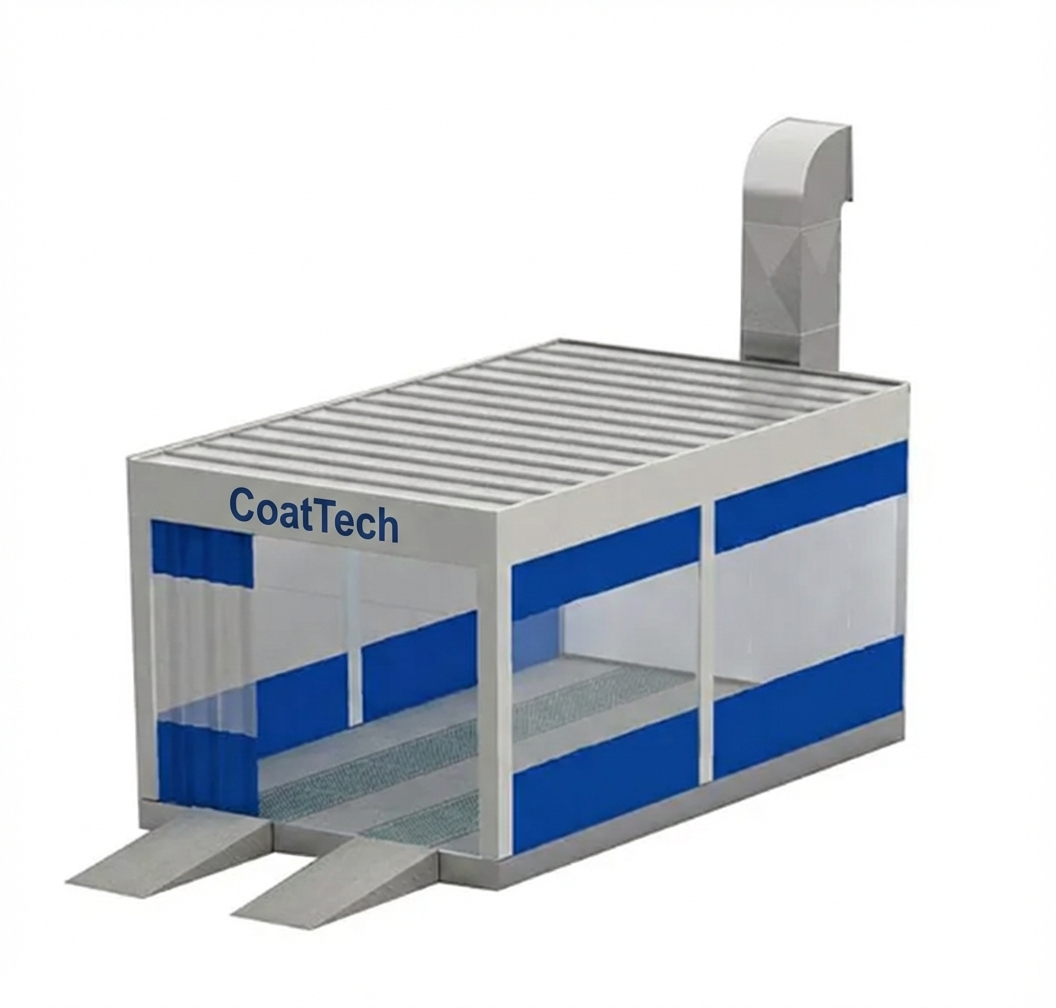

| Basement | Type | Pit Installation or Heavy Steel Ramp | - |
| Lighting | Type | Explosion Proof Industrial LEDs (IP65) | - |

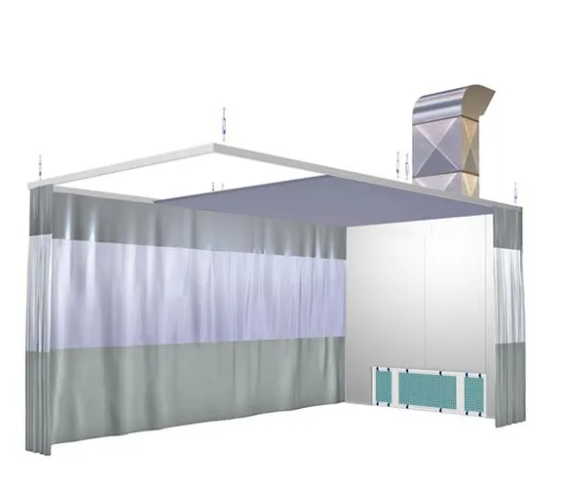

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.
Convenience: Easily slide curtains open to move cars in and out quickly.
Visibility: Transparent windows allow the manager to monitor work progress.
Durability: Resistant to solvents and wear.
Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.
Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.
Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.

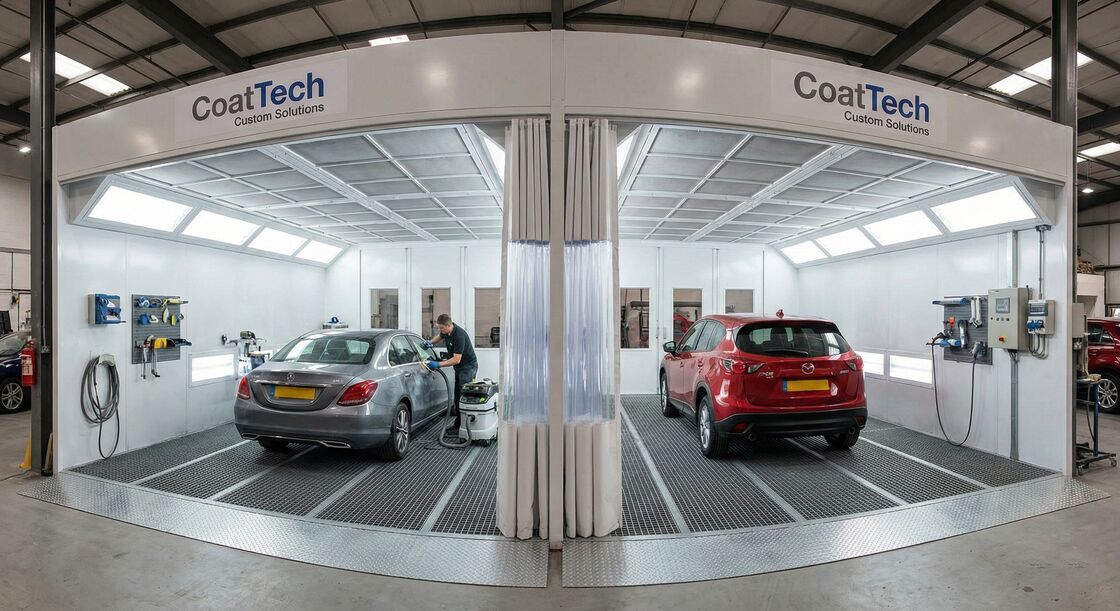

Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.
Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.
